Steel | FITTINGS | HIGH PRESSURE FITTINGS
SPECIFICATIONS
TYPE

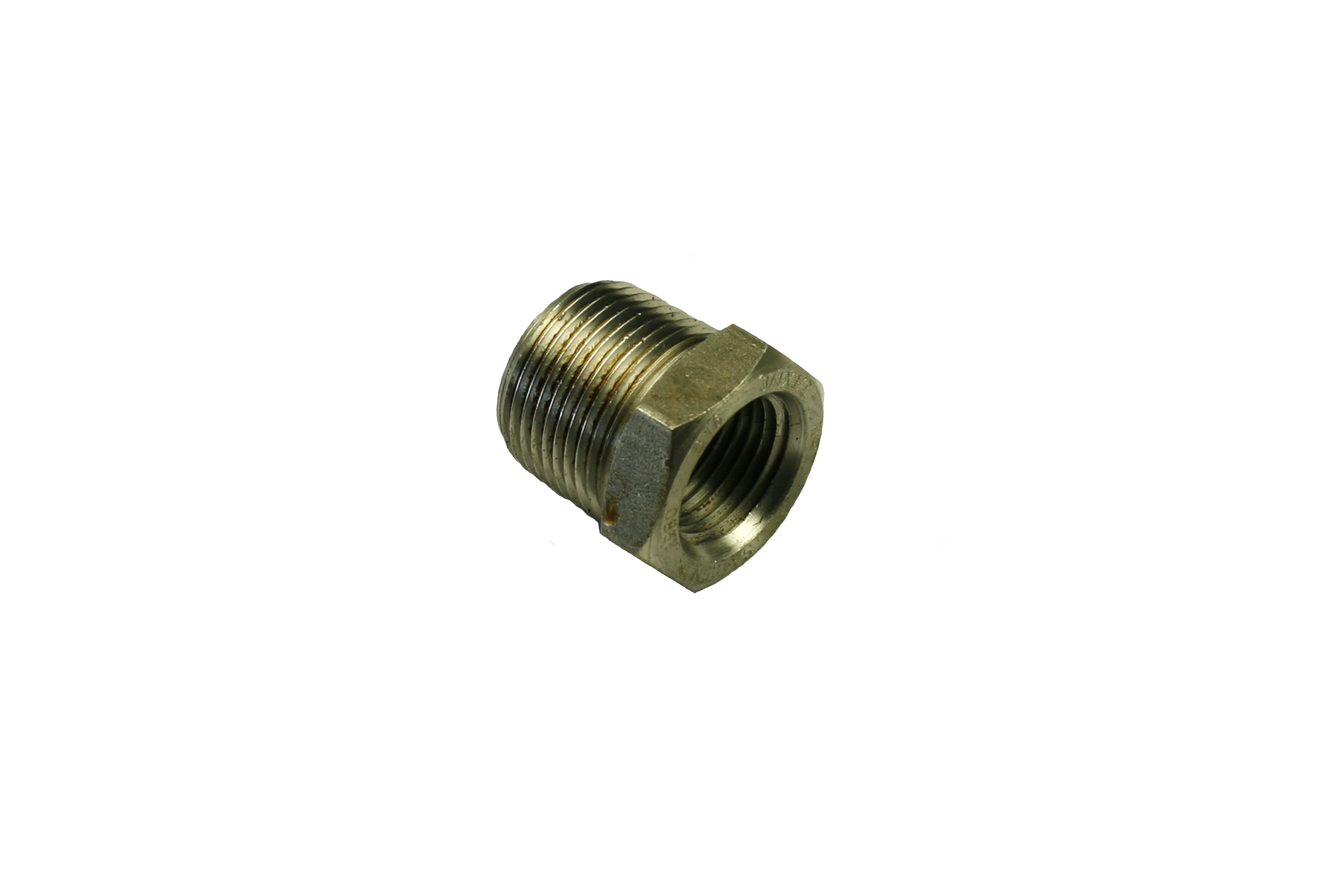

Elbow, M/F Elbow, Tee, Coupling, Half Coupling, Cap, Plug, Bushing, Union, Reducer Insert, Pipe Nipple, Outlets Etc.
SIZE
NPS 1/8” ~ 4”(6mm ~ 100mm).
RATING
- Threaded End – 3000lbs, 6000lbs (fitting type dependent)
- Socket-Weld End –3000lbs, 6000lbs (fitting type dependent)
- Buttweld End – Schedule 80
MARKING
- Carbon and Alloy Steel: marked by stamping
- 3/8” under: brand only
- 1/2” To 4”: marked brand, material, heat no. B16 (belong to ANSI B16. 11 Product), pressure and size
FINISHINGBlack, galvanized (on request), yellow dichromate (on request).
OUR RANGE
3000lb Threaded 90° Elbow
3000lb Threaded Male-Female Elbow
3000lb Threaded 45° Elbow
3000lb Threaded Equal Tee
3000lb Threaded Half Coupling
3000lb Threaded Reducing Coupling
3000lb Reducing Hexagon Nipple
6000lb Threaded 90° Elbow
6000lb Threaded Equal Tee
3000lb Socket Weld 90° Elbow
3000lb Socket Weld 45° Elbow
3000lb Socket Weld Equal Tee
3000lb Socket Weld Coupling
3000lb Socket Weld Reducing Coupling
3000lb Socket Weld Reducing Insert
6000lb Socket Weld 90° Elbow
6000lb Socket Weld Equal Tee
6000lb Socket Weld Coupling
3000lb Branch Outlet with Threaded End
3000lb Branch Outlet with Socket Weld End
3000lb Branch Outlet Butt Weld End
