Steel | FITTINGS | Galvanised Malleable Iron Pipe Fittings

SPECIFICATIONS


STANDARD AND IDENTIFICATION

Standard for production and use EN 10242 : 1994. Fittings made of high quality blackheart malleable cast iron to ASTM A-197, ASTM A47.

THREADS

The threads are cut according to AS 1722.1 / ISO 7/1. Parallel internal thread (RP) and tapered external thread (R).

APPLICATION

All the fittings are adequate for the supply of water at recommended maximum working pressures of 1379kPa and gas, steam
and compressed air at recommended maximum working pressure of 1034 kPa.

Note: Working pressures may also be limited by relevant pressure piping codes or Industry regulations.

DIMENSIONS

All the fittings are manufactured to the specifications of standard BS EN 10242, BS 143, BS 1256.

INSPECTION

All the fittings are inspected for conformity with the specifications of standard EN 10242.

MARKING

All the fittings, when possible, are marked with brand and/or with the nominal size Identification.

HOT DIP

The fittings are delivered in hot dip galvanised finish, as prescribed by the standard EN 10242.

LEAK TEST

Applying the standard EN 10242 each individual fitting is subjected to a pressure test with a min. hydrostatic pressure of 2068 kPa, which is equivalent to a pneumatic pressure of min. 500 kPa, without showing any sign of leakage or abnormality.



OUR RANGE

Gal Mal Fittings-Hex Bush1

Hexagon Bush

Gal Mal Fittings-FF Elbow 90

Female-Female Elbow 90°

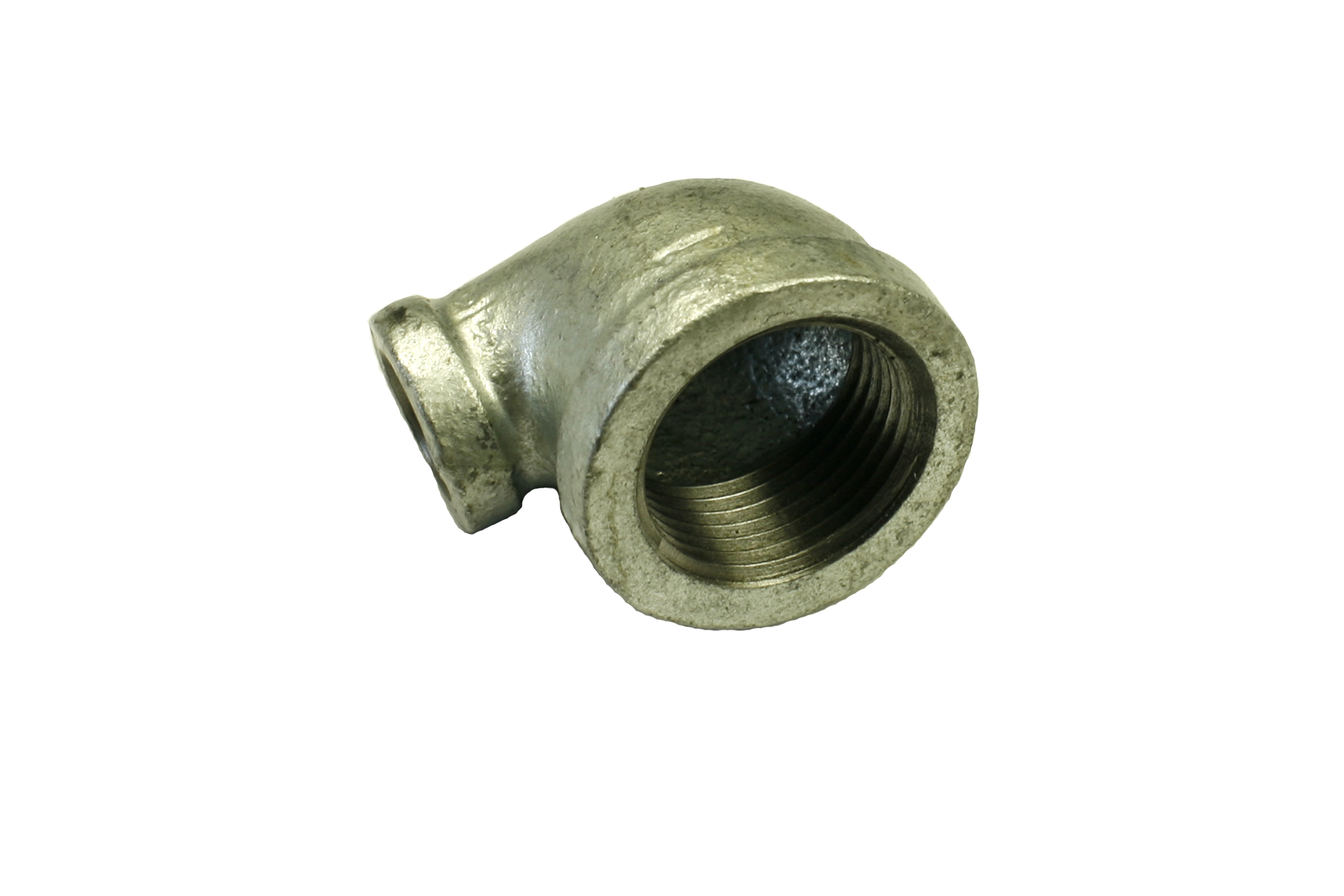

Gal Mal Fittings-FF Red Elbow 90

Female-Female Reducing Elbow 90°

Gal Mal Fittings-MF Elbow 90

Male-Female Elbow 90°

Galv Malleable Male-Fem 45-1

Male-Female Elbow 45°

Gal Mal Fittings-Elbow 45

Female-Female Elbow 45°

Gal Mal Fittings-Hexagon Nipple

Hexagon Nipple

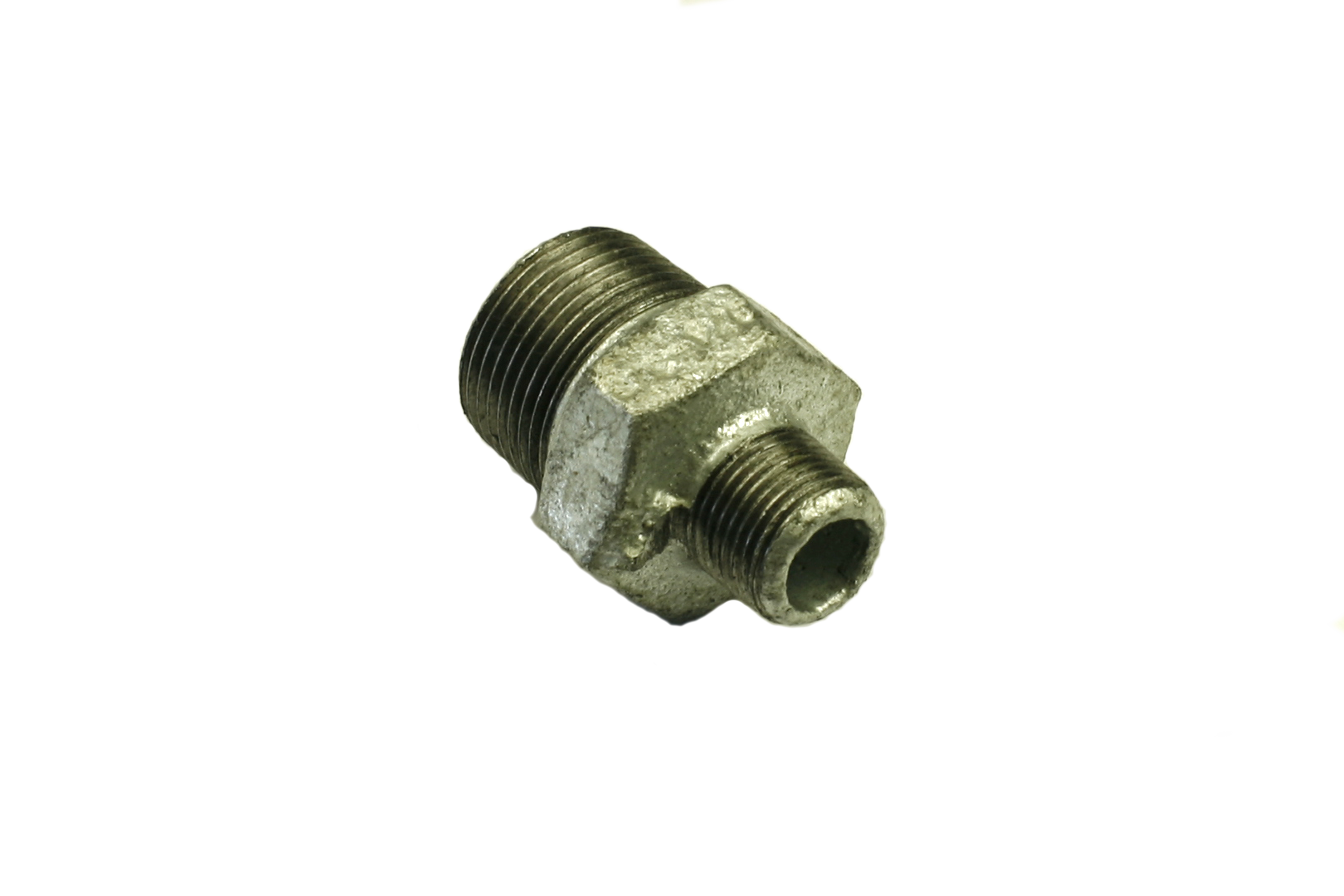

Gal Mal Fittings-Hexagon Reducing Nipple

Hexagon Reducing Nipple

Gal Mal Fittings-Equal Tee

Equal Tee

Gal Mal Fittings-Reducing Tee

Reducing Tee

Gal Mal Fittings-Cap

Cap

Gal Mal Fittings-Square Head Plug

Square Head Plug

Gal Mal Fittings-Cross

Cross

Gal Mal Fittings-Socket

Socket

Gal Mal Fittings-MF Socket

Male-Female Socket

Gal Mal Fittings-Reducing Socket

Reducing Socket

Gal Mal Fittings-FF Mac Union

Steel to Brass Female-Female Union

Gal Mal Fittings-FF Mac Union

Female-Female Mac Union

Gal Mal Fittings-FF Mac Union

Steel to Steel Female-Female Union

Gal Mal Fittings-FF Bend 90

Female-Female Bend 90°

Gal Mal Fittings-MF Bend 90

Male-Female Bend 90°

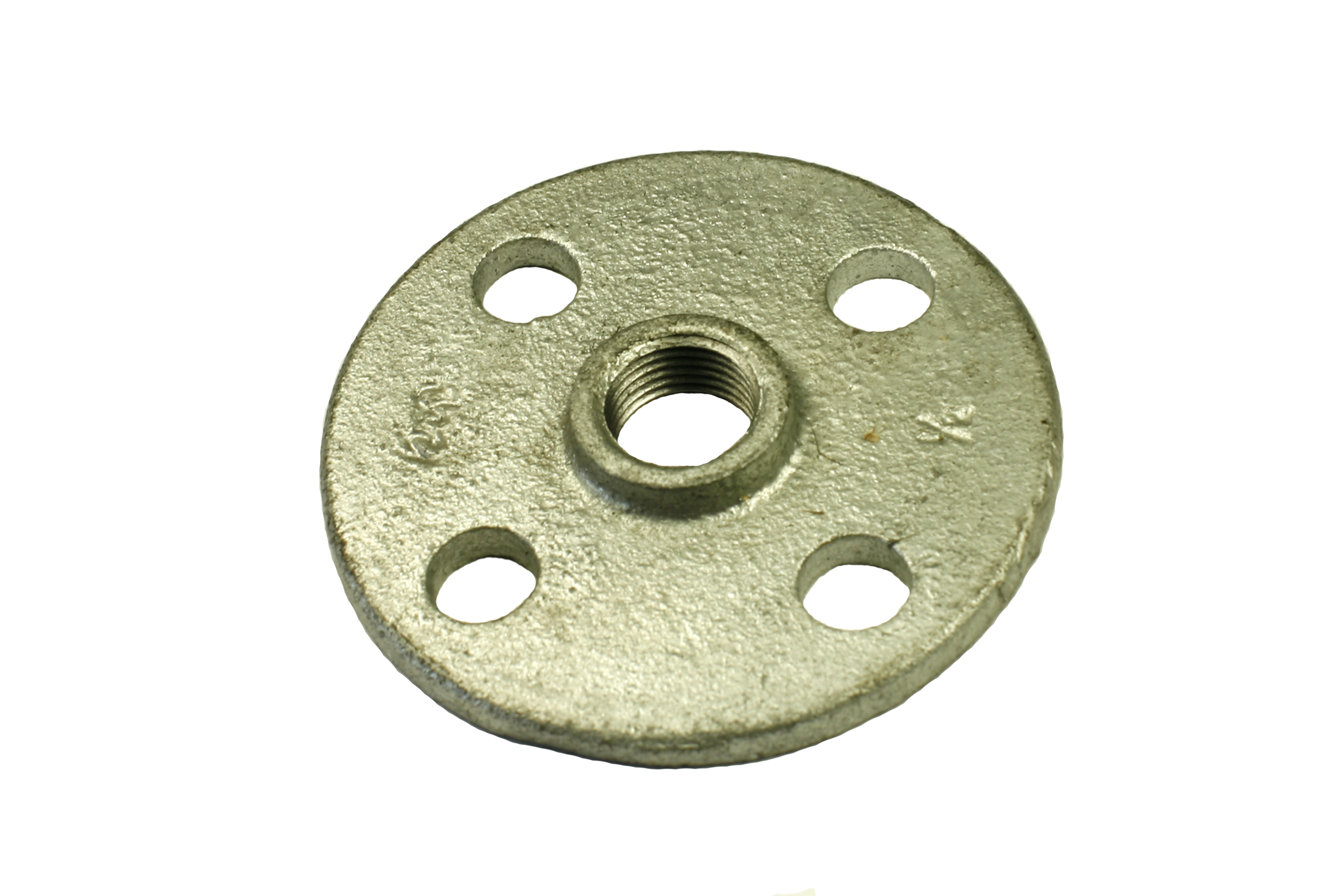

Gal Mal Fittings-Flange BS10 Drilled Table D

Malleable Flange BS10 Drilled Table “D”

Gal Mal Fittings-Backnut

Backnut

Gal Mal Fittings-FF Long Compr Coupling

Female-Female Long Compression Coupling

Gal Mal Fittings-Riken MF Compression Coupling

Male-Female Long Compression Coupling

Gal Mal Fittings-Riken MF Compression Coupling

Riken Male-Female Compression Coupling

Gal Mal Fittings-Riken Compression Coupling

Riken Compression Coupling
