STEEL | FITTINGS | FLANGES | EN1092-1 |  Type 13 PN16 RF Flanges, Threaded BSP, Galvanised

PN16 Galvanised Threaded BSP Flange EN 1092-1 Type 13 A105N

Image P

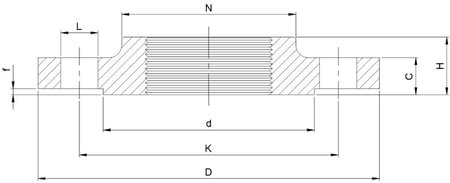

PNB = pipe nominal bore  |  POD = pipe outside diameter  | D / K / L = flange dimensions  |  NO = number holes  |  RF d / RF f = raised face dimensions  |  N / H = boss dimension  |  kg/pc is approximate

Asmuss Code PNB POD D C N H RF d RF f NO L K kg/pc
FLSC16G040 40 48.3 150 18 70 32 88 3 4 18 110 1.78
FLSC16G050 50 60.3 165 18 84 28 102 3 4 18 125 2.43
FLSC16G065 65 76.1 185 18 104 32 122 3 8 18 145 3.18
FLSC16G080 80 88.9 200 20 118 34 138 3 8 18 160 4.12
FLSC16G100 100 114.3 220 20 140 40 158 3 8 18 180 4.62
