Type 12 PN16 Forged Slip On RF Flanges

PN16 Slip On RF Flange EN1092-1 Type 12 A105N

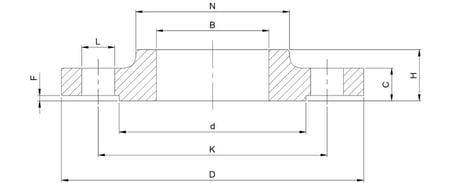

Image L-1

Asmuss Code	PNB	POD	D	B	C	N	H	RF d	RF f	NO	L	K	kg/pc
FL16SO015	15	21.3	95	22.0	16	35	22	45	2	4	14	65	0.66
FL16SO020	20	26.9	105	27.5	18	45	26	58	2	4	14	75	0.95
FL16SO025	25	33.7	115	34.5	18	52	28	68	2	4	14	85	1.14
FL16SO032	32	42.4	140	43.5	18	60	30	78	2	4	18	100	1.69
FL16SO040	40	48.3	150	49.5	18	70	32	88	3	4	18	110	1.86
FL16SO050	50	60.3	165	61.5	18	84	28	102	3	4	18	125	2.53
FL16SO065	65	76.1	185	77.5	18	104	32	122	3	8	18	145	3.06
FL16SO080	80	88.9	200	90.5	20	118	34	138	3	8	18	160	3.70
FL16SO100	100	114.3	220	116.0	20	140	40	158	3	8	18	180	4.62
FL16SO125	125	139.7	250	141.5	22	168	44	188	3	8	18	210	6.30
FL16SO150	150	168.3	285	170.5	22	195	44	212	3	8	22	250	7.75
FL16SO200	200	219.1	340	221.5	24	246	44	268	3	12	22	295	11.30
FL16SO250	250	273.0	405	276.5	26	298	46	320	3	12	26	355	15.60
FL16SO300	300	323.9	460	327.5	28	350	46	378	4	12	26	410	22.00
FL16SO350	350	355.6	520	359.0	30	400	57	438	4	16	26	470	31.20
