PN16 Weld Neck RF Flange EN1092-1 Type 11 A105N

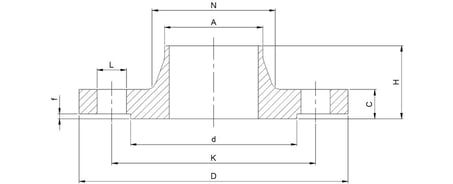

PNB = pipe nominal bore | POD = pipe outside diameter | D / K / L = flange dimensions | NO = number holes | RF d / RF f = raised face dimensions | N / A / H = boss dimension | kg/pc is approximate
Asmuss Code | PNB | POD | D | C | RF d | RF f | N | A | H | NO | L | K | kg/pc |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FL16WN025 | 25 | 33.7 | 115 | 18 | 68 | 2 | 46 | 33.7 | 40 | 4 | 14 | 85 | 1.14 |
FL16WN032 | 32 | 42.4 | 140 | 18 | 78 | 2 | 56 | 42.4 | 42 | 4 | 18 | 100 | 1.69 |
FL16WN040 | 40 | 48.3 | 150 | 18 | 88 | 3 | 64 | 48.3 | 45 | 4 | 18 | 110 | 1.86 |
FL16WN050 | 50 | 60.3 | 165 | 18 | 102 | 3 | 74 | 60.3 | 45 | 4 | 18 | 125 | 2.53 |
FL16WN065 | 65 | 76.1 | 185 | 18 | 122 | 3 | 92 | 76.1 | 45 | 8 | 18 | 145 | 3.06 |
FL16WN080 | 80 | 88.9 | 200 | 20 | 138 | 3 | 105 | 88.9 | 50 | 8 | 18 | 160 | 3.70 |
FL16WN100 | 100 | 114.3 | 220 | 20 | 158 | 3 | 131 | 114.3 | 52 | 8 | 18 | 180 | 4.62 |
FL16WN125 | 125 | 139.7 | 250 | 22 | 188 | 3 | 156 | 139.7 | 55 | 8 | 18 | 210 | 6.30 |
FL16WN150 | 150 | 168.3 | 285 | 22 | 212 | 3 | 184 | 168.3 | 55 | 8 | 22 | 250 | 7.75 |
FL16WN200 | 200 | 219.1 | 340 | 24 | 268 | 3 | 235 | 219.1 | 62 | 12 | 22 | 295 | 11.30 |
