PN16 Blank Flange EN 1092-1 Type 05 A105N

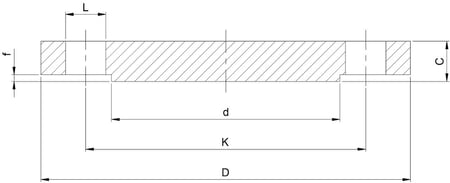

PNB = pipe nominal bore | POD = pipe outside diameter | D / K / L = flange dimensions | NO = number holes | RF d / RF f = raised face dimensions | kg/pc is approximate
Asmuss Code | PNB | POD | D | C | RF d | RF f | NO | L | K | kg/pc |
---|---|---|---|---|---|---|---|---|---|---|
FL16BL025 | 25 | 33.7 | 115 | 18 | 68 | 2 | 4 | 14 | 85 | 1.20 |
FL16BL032 | 32 | 42.4 | 140 | 18 | 78 | 2 | 4 | 18 | 100 | 1.80 |
FL16BL040 | 40 | 48.3 | 150 | 18 | 88 | 3 | 4 | 18 | 110 | 2.10 |
FL16BL050 | 50 | 60.3 | 165 | 18 | 102 | 3 | 4 | 18 | 125 | 2.90 |
FL16BL065 | 65 | 76.1 | 185 | 18 | 122 | 3 | 8 | 18 | 145 | 3.60 |
FL16BL080 | 80 | 88.9 | 200 | 20 | 138 | 3 | 8 | 18 | 160 | 4.60 |
FL16BL100 | 100 | 114.3 | 220 | 20 | 158 | 3 | 8 | 18 | 180 | 5.60 |
FL16BL150 | 150 | 168.3 | 285 | 22 | 212 | 3 | 8 | 22 | 250 | 10.50 |
FL16BL200 | 200 | 219.1 | 340 | 24 | 268 | 3 | 12 | 22 | 295 | 16.00 |
FL16BL250 | 250 | 273.0 | 405 | 26 | 320 | 3 | 12 | 26 | 355 | 25.00 |
FL16BL300 | 300 | 323.9 | 460 | 28 | 378 | 4 | 12 | 26 | 410 |
