PN16 Slip On RF Flange EN1092-1 Type 01 A105N

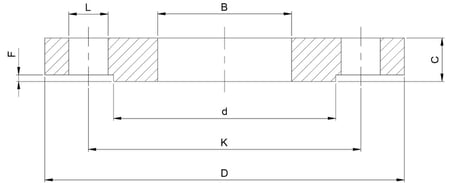

PNB = pipe nominal bore | POD = pipe outside diameter | D / B / K / L = flange dimensions | N = number holes | RF d / RF f = raised face dimensions
Asmuss Code | PNB | POD | D | B | C | RF d | RF f | N | L | K | Kg/PC |
---|---|---|---|---|---|---|---|---|---|---|---|
FL16SO040P | 40 | 48.3 | 150 | 49.5 | 18 | 88 | 3 | 4 | 18 | 110 | 1.60 |
FL16SO080P | 80 | 88.9 | 200 | 90.5 | 20 | 138 | 3 | 8 | 18 | 160 | 3.30 |
FL16SO100P | 100 | 114.3 | 220 | 116.0 | 22 | 158 | 3 | 8 | 18 | 180 | 4.06 |
FL16SO125P | 125 | 139.7 | 250 | 141.5 | 22 | 188 | 3 | 8 | 18 | 210 | 5.00 |
FL16SO200P | 200 | 219.1 | 340 | 221.5 | 26 | 268 | 3 | 12 | 22 | 295 | |
FL16SO250P | 250 | 273.0 | 405 | 276.5 | 29 | 320 | 3 | 12 | 26 | 355 | 12.00 |
