ANSI CL150 RF Slip On Flange B16.5 A105N

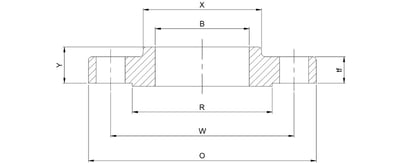

PNB = pipe nominal bore | POD = pipe outside diameter | O / B / tf / Y = relate to the flange | X = hub | R = raised face | N = number holes / H / W relate to the drilling template | kg/piece is approximate
Asmuss Code | PNB | POD | O | B | tf | Y | X | R | N | H | W | KG/PC |
---|---|---|---|---|---|---|---|---|---|---|---|---|
FL150SO015S | 15 | 21.3 | 90 | 22.2 | 9.6 | 14 | 30 | 34.9 | 4 | 15.9 | 60.3 | 0.44 |
FL150SO020S | 20 | 26.7 | 100 | 27.7 | 11.2 | 14 | 38 | 42.9 | 4 | 15.9 | 69.9 | 0.63 |
FL150SO025S | 25 | 33.4 | 110 | 34.5 | 12.7 | 16 | 49 | 50.8 | 4 | 15.9 | 79.4 | 0.78 |
FL150SO032S | 32 | 42.2 | 115 | 43.2 | 14.3 | 19 | 59 | 63.5 | 4 | 15.9 | 88.9 | 1.03 |
FL150SO040S | 40 | 48.3 | 125 | 49.5 | 15.9 | 21 | 65 | 73.0 | 4 | 15.9 | 98.4 | 1.42 |
FL150SO050S | 50 | 60.3 | 150 | 61.9 | 17.5 | 24 | 78 | 92.1 | 4 | 19.1 | 120.7 | 2.06 |
FL150SO065S | 65 | 73.0 | 180 | 74.6 | 20.7 | 27 | 90 | 104.8 | 4 | 19.1 | 139.7 | 3.28 |
FL150SO080S | 80 | 88.9 | 190 | 90.7 | 22.3 | 29 | 108 | 127.0 | 4 | 19.1 | 152.4 | 3.85 |
FL150SO100S | 100 | 114.3 | 230 | 116.1 | 22.3 | 32 | 135 | 157.2 | 8 | 19.1 | 190.5 | 5.3 |
FL150SO125S | 125 | 141.3 | 255 | 143.8 | 22.3 | 35 | 164 | 185.7 | 8 | 22.2 | 215.9 | 6.07 |
FL150SO150S | 150 | 168.3 | 280 | 170.7 | 23.9 | 38 | 192 | 215.9 | 8 | 22.2 | 241.3 | 7.45 |
FL150SO200S | 200 | 219.1 | 345 | 221.5 | 27.0 | 43 | 246 | 269.9 | 8 | 22.2 | 298.5 | 12.1 |
FL150SO250S | 250 | 273.0 | 405 | 276.2 | 28.6 | 48 | 305 | 323.8 | 12 | 25.4 | 362 | 16.5 |
FL150SO300S | 300 | 323.8 | 485 | 327.0 | 30.2 | 54 | 365 | 381.0 | 12 | 25.4 | 431.8 | 26.2 |
FL150SO350S | 350 | 355.6 | 535 | 359.2 | 33.4 | 56 | 400 | 412.8 | 12 | 28.6 | 476.3 | 34.6 |
FL150SO400S | 400 | 406.4 | 595 | 410.5 | 35.0 | 62 | 457 | 469.9 | 16 | 28.6 | 539.8 | 44.8 |
FL150SO450S | 450 | 457.2 | 635 | 461.8 | 38.1 | 67 | 505 | 533.4 | 16 | 31.8 | 577.9 | 52 |
FL150SO500S | 500 | 508.0 | 700 | 513.1 | 41.3 | 71 | 559 | 584.2 | 20 | 31.8 | 635 | 61.9 |
FL150SO600S | 600 | 609.6 | 815 | 616.0 | 46.1 | 81 | 663 | 692.2 | 20 | 35.0 | 749.3 | 86.9 |
