Long Radius Elbow 90° Standard

Long Radius Elbow 90° Standard ASTM A234 WPB ANSI B16.9

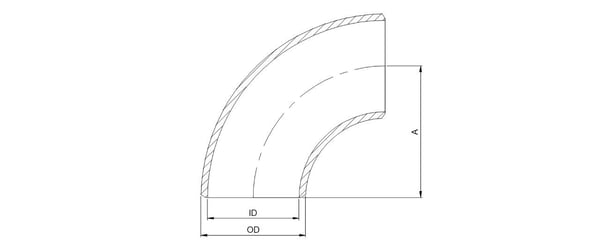

Butt Weld Long Radius 90 Degree STD

OD / ID / A = mm | T = Wall thickness | kg/m is approximate

Asmuss Code	NB	OD	ID	A	T	KG/M
BWE90015	15	21.3	15.8	38	2.8	0.08
BWE90020	20	26.7	21.0	38	2.9	0.08
BWE90025	25	33.4	26.6	38	3.4	0.15
BWE90032	32	42.2	35.1	48	3.6	0.25
BWE90040	40	48.3	40.9	57	3.7	0.36
BWE90050	50	60.3	52.5	76	3.9	0.65
BWE90065	65	73.0	62.7	95	5.2	1.29
BWE90080	80	88.9	77.9	114	5.5	2.02
BWE90090	90	101.6	90.1	133	5.7	2.84
BWE90100	100	114.3	102.3	152	6.0	3.84
BWE90125	125	141.3	128.2	190	6.6	6.51
BWE90150	150	168.3	154.1	229	7.1	10.10
BWE90200	200	219.1	202.7	305	8.2	20.30
BWE90250	250	273.0	254.5	381	9.3	36.00
BWE90300	300	323.8	304.7	457	9.5	53.00
BWE90350	350	355.6	336.5	533	9.5	68.00
BWE90400	400	406.4	387.3	610	9.5	89.20
BWE90450	450	457.0	437.9	686	9.5	113.00
BWE90500	500	508.0	488.9	762	9.5	140.00
BWE90600	600	610.0	590.9	914	9.5	202.00
