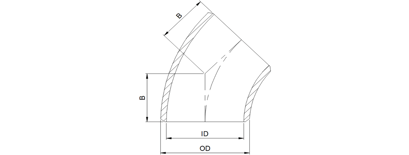

Long Radius Elbow 45° Lightweight
T = wall thickness | Kg/pc is approximate
| Asmuss Code | NB | OD | ID | B | T | Kg/pc |
|---|---|---|---|---|---|---|
| BWE45L050 | 50 | 60.5 | 52.9 | 31.6 | 3.8 | 0.55 |
| BWE45L065 | 65 | 76.3 | 67.9 | 39.5 | 4.2 | 0.55 |
| BWE45L080 | 80 | 89.1 | 80.7 | 47.3 | 4.2 | 0.90 |
| BWE45L100 | 100 | 114.3 | 105.3 | 63.1 | 4.5 | 1.59 |
| BWE45L125 | 125 | 139.8 | 130.8 | 78.9 | 4.5 | 2.86 |
| BWE45L150 | 150 | 165.2 | 155.2 | 94.7 | 5.0 | 4.14 |
| BWE45L200 | 200 | 216.3 | 204.7 | 126.3 | 5.8 | 2.60 |
| BWE45L250 | 250 | 267.4 | 254.2 | 157.8 | 6.6 | 4.70 |
| BWE45L300 | 300 | 318.5 | 304.7 | 189.4 | 6.9 | 6.80 |
