An essential and professional tool for the alignment and support of pipes during electrofusion from Ø 125mm to 500mm (4” IPS ÷ 20” IPS). The ALIGNER is entirely made of steel, featuring a central adjustable joint and pipe fastening clamps fixed on axes. The adjustable joint can be set on 4 different working positions to allow welding at preset angles such as 45°, 90°, “in line” and T welding. Axes have V-shaped clamps positioned on them, which are equipped with pipe fastening belts. The system, along with fixing the pipe to the clamp, serves also as a centering device. Each axis has 2 guides on which the clamps are able to slide. Practical side handles ensure an easy grip during movement and positioning, both during welding procedures, and preparation.
Asmuss Code: RITMOALIGNER/500
Working Range: 125-500mm
Used to prevent movement during the welding process. A convenient, flexible system for holding PE pipes steady during the electrofusion process. Does not assist with rerounding.
For larger dimensions, it is recommended to combine two or more Pipe Clamps.
Asmuss Code: PF44300023
Working Range: 110-560mm

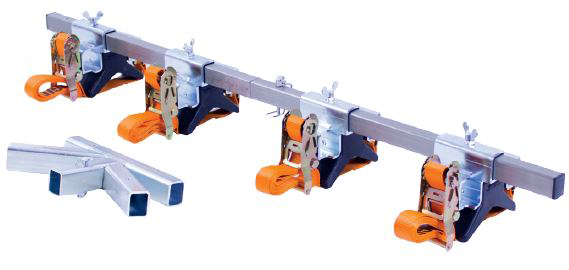

Includes 4 pipe clamps, 2 base bars, angled adaptor 22.5°, 45° & 90°
Strong, lightweight and mobile alignment tool. Rapid assembly.
Asmuss Code: PF44300001 (32-110mm)
Asmuss Code: PF44300001 (63-225mm)
Asmuss Code: PF44300026 (Pipe Clamp 250-800mm)
Included in set: 2 complete clamps each with a pulling clamp, a fixed clamp and pulling shoes for couplers. Greatly assists positioning of slip couplers.
Asmuss Code: PF44601003
Working Range: DN32-225mm
Product Dimensions: 590mm x 790mm footprint when erected by 1065mm high
Asmuss Code: PF44601007
Working Range: DN200-1400mm
Product Dimensions: 800 x 340 x 670mm
