ANSI CL150 Blind Flange B16.5 A105N

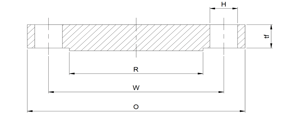

PNB = pipe nominal bore | POD = pipe outside diameter | O / tf relate to flange | R = raised face | N = number holes / H / W relate to drilling template | kg/piece is approximate
Asmuss Code | PNB | POD | O | tf | R | N | H | W | KG/PC |
---|---|---|---|---|---|---|---|---|---|
FL150BL015S | 15 | 21.3 | 90 | 9.6 | 34.9 | 4 | 15.9 | 60.3 | 0.42 |
FL150BL020S | 20 | 26.7 | 100 | 11.2 | 42.9 | 4 | 15.9 | 69.9 | 0.61 |
FL150BL025S | 25 | 33.4 | 110 | 12.7 | 50.8 | 4 | 15.9 | 79.4 | 0.86 |
FL150BL032S | 32 | 42.2 | 115 | 14.3 | 63.5 | 4 | 15.9 | 88.9 | 1.17 |
FL150BL040S | 40 | 48.3 | 125 | 15.9 | 73.0 | 4 | 15.9 | 98.4 | 1.53 |
FL150BL050S | 50 | 60.3 | 150 | 17.5 | 92.1 | 4 | 19.1 | 120.7 | 2.42 |
FL150BL065S | 65 | 73.0 | 180 | 20.7 | 104.8 | 4 | 19.1 | 139.7 | 3.94 |
FL150BL080S | 80 | 88.9 | 190 | 22.3 | 127.0 | 4 | 19.1 | 152.4 | 4.93 |
FL150BL100S | 100 | 114.3 | 230 | 22.3 | 157.2 | 8 | 19.1 | 190.5 | 7.00 |
FL150BL125S | 125 | 141.3 | 255 | 22.3 | 185.7 | 8 | 22.2 | 215.9 | 8.63 |
FL150BL150S | 150 | 168.3 | 280 | 23.9 | 215.9 | 8 | 22.2 | 241.3 | 11.30 |
FL150BL200S | 200 | 219.1 | 345 | 27.0 | 269.9 | 8 | 22.2 | 298.5 | 19.60 |
FL150BL250S | 250 | 273.0 | 405 | 28.6 | 323.8 | 12 | 25.4 | 362.0 | 28.80 |
FL150BL300S | 300 | 323.8 | 485 | 30.2 | 381.0 | 12 | 25.4 | 431.8 | 43.20 |
FL150BL350S | 350 | 355.6 | 535 | 33.4 | 412.8 | 12 | 28.6 | 476.3 | 58.10 |
FL150BL400S | 400 | 406.4 | 595 | 35.0 | 469.9 | 16 | 28.6 | 539.8 | 76.00 |
FL150BL450S | 450 | 457.2 | 635 | 38.1 | 533.4 | 16 | 31.8 | 577.9 | 93.70 |
FL150BL500S | 500 | 508.0 | 700 | 41.3 | 584.2 | 20 | 31.8 | 635.0 | 122.00 |
FL150BL600S | 600 | 609.6 | 815 | 46.1 | 692.2 | 20 | 35.0 | 749.3 | 185.00 |
