The Delta Dragon range of butt fusion welding machines are manufactured to the highest quality and are designed for welding pressure pipelines for the transportation of water, gas and other fluids. All machines are self-aligning and are supplied complete with base machine, heating plate and support, milling cutter, electro-hydraulic gear-case and a complete set of reduction insert clamps.

Delta Dragon 160 - 355B

Model: Delta Dragon 160 (Working Range: 40 - 160mm)

Model: Delta Dragon 200 (Working Range: 63 - 200mm)

Model: Delta Dragon 250B (Working Range: 75 - 250mm)

Model: Delta Dragon 315B (Working Range: 90 - 315mm)

Model: Delta Dragon 355B (Working Range: 125 - 355mm)

Standard Composition:

• Machine body
• Heater plate
• Milling cutter
• Electrohydraulic gearcase
• Supports

Optional Extras:

• Tool for flanges
• Machine body trolley
• Electrical crane

Delta 500-630

Model: Delta 500 (Working Range: 200 - 500mm)

Model: Delta 630 (Working Range: 355 - 630mm)

Standard Composition:

• Machine body
• Extractable heating plate
• Extractable electric milling cutter
• Milling cutter/heating plate support
• Electrohydraulic gearcase
• Supports

Optional Extras

• Tool for flanges
• Machine body trolley
• Electrical crane

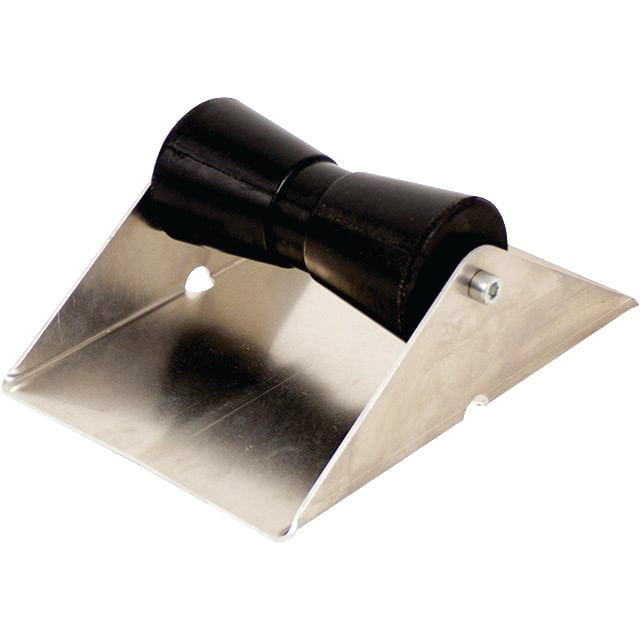

• Rollers

Delta 800 - 1600

Model: Delta 800 (Working Range: 500 - 800mm)

Model: Delta 1000 (Working Range: 630 - 1000mm)

Model: Delta 1200 (Working Range: 710 - 1200mm)

Model: Delta 1600 ( Working Range: 800 - 1600mm)

Standard Composition:

• Machine body
• Heater plate
• Milling cutter
• Electrohydraulic gearcase
• Supports

Optional Extras

• Tool for flanges
• Machine body trolley
• Electrical crane
• Heating plate/milling cutter trolley
• Hydraulic pipe lift rollers (1600 model)

EASY LIFE

The EASY LIFE range of butt fusion welding machines manages the welding cycle in a semi-automatic way. The machines incorporate the new EASY LIFE control System and Gear Case that enable a quick and simple selection of pressure, time and temperature which can be modified whenever necessary. All machines are self-aligning and are supplied complete with base machine, heating plate and support, milling cutter, EASY LIFE gear case and a complete set of reduction insert clamps. The EASY LIFE in-built memory can store up to 400 welding cycles which can be summarised in a PDF format and transferred through a USB port.

Model: Easy Life 160 (Working Range: 40-160mm)

Model: Easy Life 200 (Working Range: 63 - 200mm)

Model: Easy Life 250 (Working Range: 75 - 250mm)

Model: Easy Life 315 (Working Range: 90 - 315mm)

Model: Easy Life 355 (Working Range: 125 - 355mm)

Model: Easy Life 500 (Working Range: 200 - 500mm)

Model: Easy Life 630 (Working Range: 280 - 630mm)

Optional Extras

• Tool for flanges
• Electrical crane
• Trolly for 630 machine

CNC Butt Fusion Machines

Butt fusion welding can be managed automatically by using the Delta Dragon CNC system; this eliminates any risk of error due to the operator. It is available in two versions: SA (Semi-Automatic) and FA (Fully Automatic). The CNC systems are available for the Delta Dragon 250B and 315B models. The easy to use software and control panel allow the operator to select from a variety of common welding standards, select pipe diameter and SDR from which the machine automatically calculates the required welding parameter (pressure, time and temperature). The CNC in-built memory can store up to 600 welding cycles which can be summarised in a PDF format and transferred through a USB port.

Model: CNC 250B (Working Range 75-250mm)

Model: CNC 315B (Working Range 90-315mm)

The complete configuration includes:

• A linear transducer applied to the machine body;
• A manually extractable heating element (SA) or an automatically extractable heating element (FA)
• Hydraulic hoses with non-drip quick couplings for connecting the gear case to the machine body
• A milling cutter/heating plate support
• A transducer cable for connecting the gear case to the machine body

Optional Extras

• Tool for flanges
• Electrical crane
