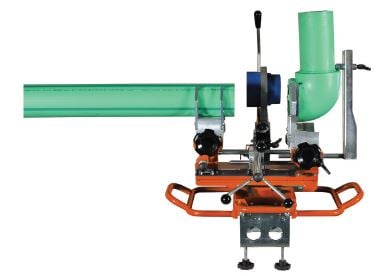

Welding machine Prisma 125 Light is a field machine for socket welding pipe and fittings in HDPE, PP, PVDF and PB with diameters between 63 -125mm. Leading particulars are the restricted weight, minimum overall dimensions and versatility. Featuring: a machine body, a self-centering clamp for locking the pipes, a self-centering clamp for locking fittings, an extractable socket welder with an automatic electronic temperature, fitting holder and a special bench vice so the machine can be used on a work bench.
63-125mm

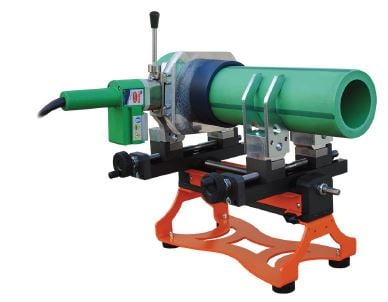

The PRISMA JIG is a compact socket welding machine for HDPE, PP and PP-R, PVDF, PB OD 20* ÷ 125mm (standard composition steel clamps from Ø 63 to 125mm; on request from Ø 20 to 63mm). The machine displays a steel frame that can be used as a support to the aligning body; the unit distinguishes itself by being able to work in tight spaces, after a swift releasing manoeuvre of the frame.

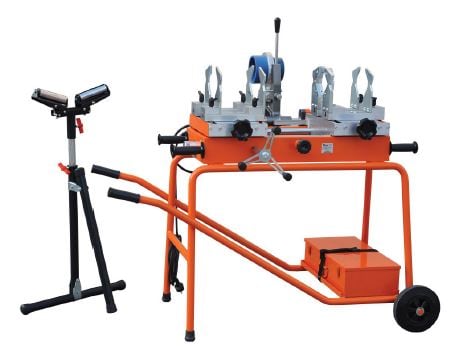

The workshop/construction welding machine is suitable for the socket fusion of pipes and fittings up to an OD of 125mm in accordance with the standards in force. The Prisma 125 is composed of a machine body featuring a selector for welding depths of different diameters, 4 self-centering steel clamps for locking pipes and fittings (different brands), a self-centering socket welder with electronic temperature control, a device for the maximum heating depth, a sliding trolley, a tripod to support the pipe, and a set of sockets and spigots for socket fusion from 25 – 125mm OD with a steel case. The welding machine is available in 2 versions, depending on the type of sockets and spigots supplied: Prisma 125 type A and type B.
